The ultimate loft conversion design & planning guide [2024 edition by loft conversion architects]

From simple rooflights to full mansards, planning regulations to how much it will cost, here's everything you need to know ahead of starting a loft conversion

15 January 2024
5 minutes read
Close-up view of a newly installed dormer loft conversion with white framed windows on a terracotta tiled roof, showcasing architectural details and efficient use of space in suburban home design.

You need more space in your home, but you can’t afford to move. Or maybe you would be perfectly happy with your home if only it was a bit bigger.

If you own a house, you have four main potential options: add a loft conversion, build an extension outwards, excavate a basement, or do a combination of those things.

Basements often aren’t possible, and can be very tricky. With a ground-floor extension, you are often faced with a trade-off: more house, less garden.

Which is why so many people are drawn to converting their lofts, which will also add to the value of your property. So here’s our ultimate guide to building a loft conversion with London and UK loft extension examples.

Elegant and modern loft conversion office space with skylights, featuring a large, custom-built blue bookshelf, a classic wooden desk with an iMac, and a contemporary glass pendant light, ideal for home office design inspiration.
By Urbanist Architecture

Can I definitely convert my loft?

If your house has a loft, there is a good chance it can be converted into liveable space. But the harder that is to do, the more likely you are to run into problems with planning permission or cost. So first things to consider are:

  • Is there enough room to fit a new staircase going into the loft?
  • Is there enough head height at the top of the stairs? Head heights on landing and stairs must be a minimum of 2m (or 1.9m for a loft landing if that's the most you achieve) once floors and ceilings are in place. As a rule of thumb, we would recommend that you check you currently have a floor-to-internal-ridge height of 2.2/2.3m in the unconverted loft - anything less will make conversion complicated and potentially much more expensive
  • Is there a water tank in the loft? Or anything else you will have to move?

The only automatic dealbreaker here is the stairs, although even if you think you don't have enough room, it’s worth talking to an architect – they might be able to suggest something you never thought of. In terms of build cost and either not needing or getting planning permission, ideally you don’t want to have to raise the maximum height of your roof.

What I want to use my new loft for is…

One common mistake people make with loft conversions is to make a start without thinking about what the new room or rooms are going to be used for.

But there are lots of decisions you will have to make that will be completely different depending on whether you want to add a new office room, a master bedroom, kids’ bedrooms, playroom, living room or gym.

That doesn’t mean that you will be stuck forever with your current choice, but to make the best decisions about where to place windows or built-in storage, for instance, it really helps if you think from the inside out.

If you build a shell and then decide how to fill it, you could find yourself having to make compromises and awkward adjustments. So before you move ahead, sort through your loft conversion ideas and set your priorities.

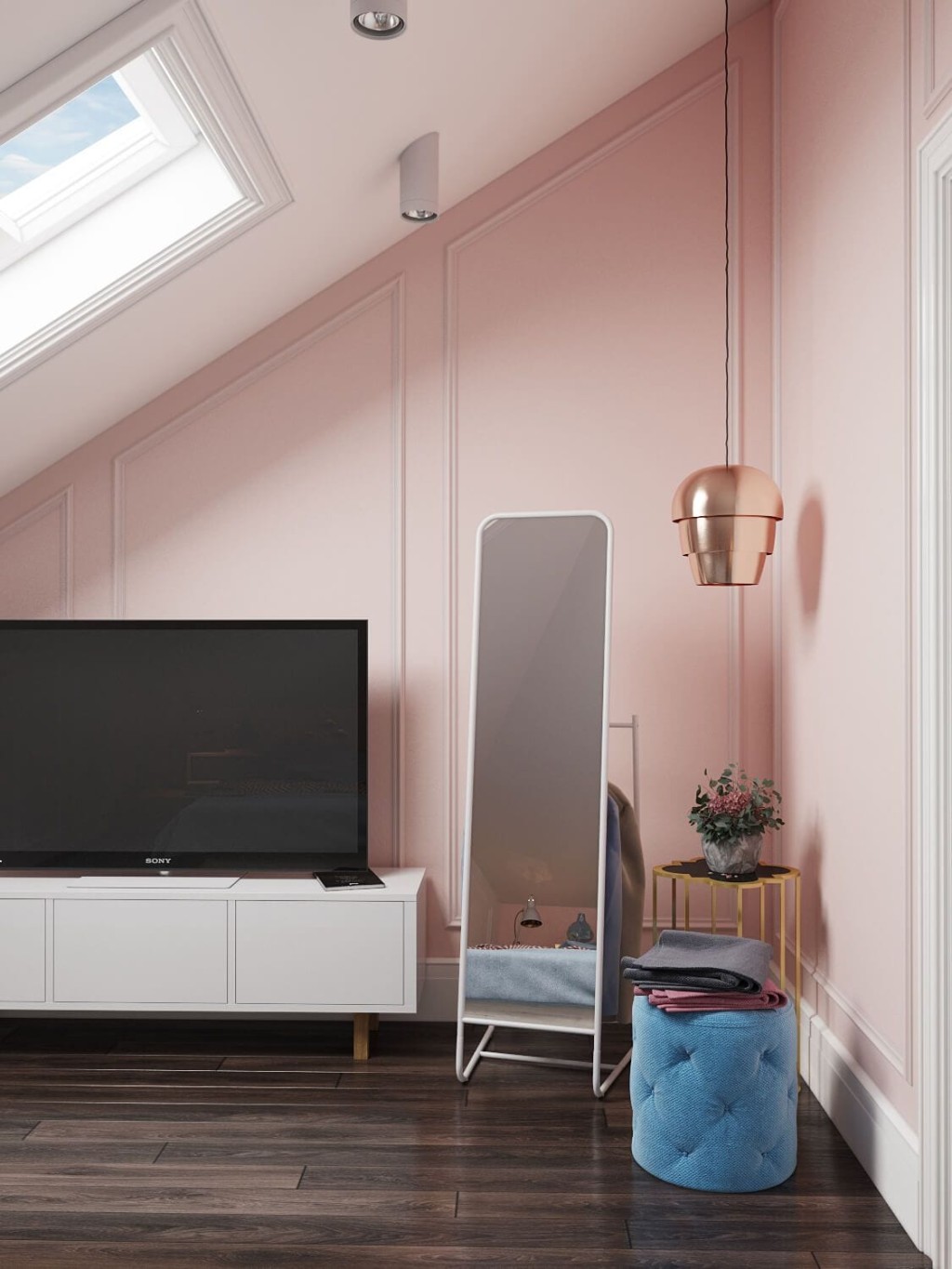

Cosy loft conversion living area under skylight with soft pink walls, featuring a stylish white TV cabinet, a full-length mirror, and chic decor including a copper pendant light and blue tufted ottoman, perfect for a modern home interior.
By Urbanist Architecture

The main types of loft conversion

Right, so you’ve checked that you can convert your loft, and you’ve decided what you want to do with it. That – along with cost and planning regulations – will help you work out which type of conversion is best for you, and whether you are going to need to extend your roof.

Here are what are generally considered as the four most common loft conversion types, although they can sometimes be used in combination:

Simplified 3D architectural model showcasing a proposed design with three red dormer windows on a white building facade, emphasising modern and functional loft conversion ideas.

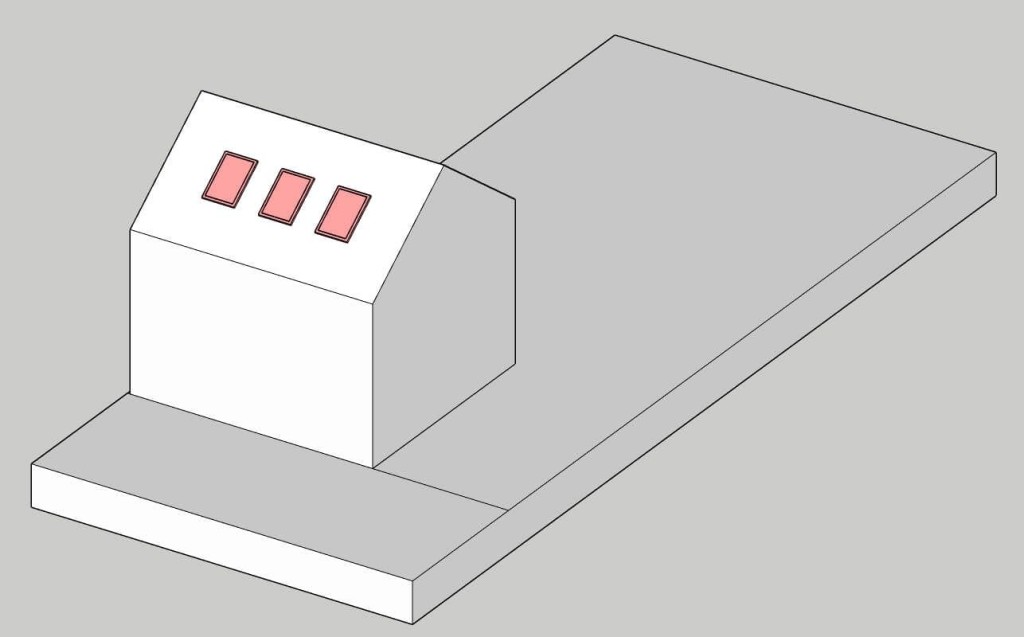

Rooflight/Simple room loft conversion

This is the simplest option. You’re not extending the roof – you’re adding windows that lie at the same angle as the rest of the roof.

Most of the work will take place on the inside, where you will need to build a new staircase – unless you are already lucky enough to already have one. You will also need to lay down a proper floor, and probably insulate the room.

3D conceptual model of a modern architectural design featuring a single large red dormer window on a white structure, illustrating innovative loft conversion ideas for urban homes.

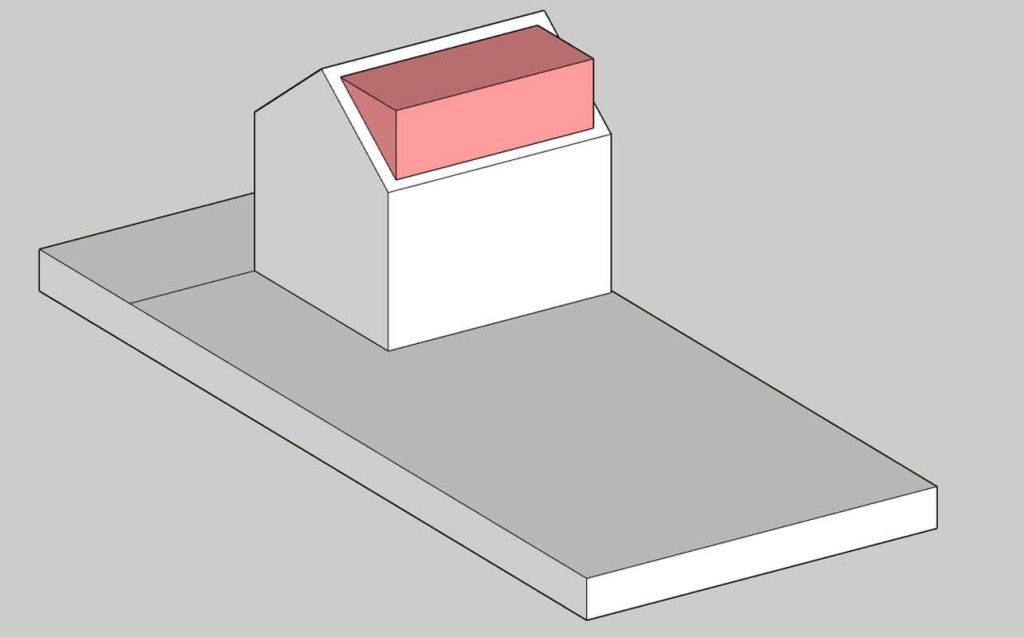

Dormer loft conversion

Most loft conversions use dormer windows. Here, you’re building out so that inside you often have an area of flat, full-height ceiling, and your window is vertical. As well as the extra space created, a dormer window will be less noisy when it rains, and is easier to look out from than a roof light.

There is a huge variety of conversions using dormers: you can have multiple dormers on the same side of the roof, or dormers front and back, narrow dormers or wide dormers.

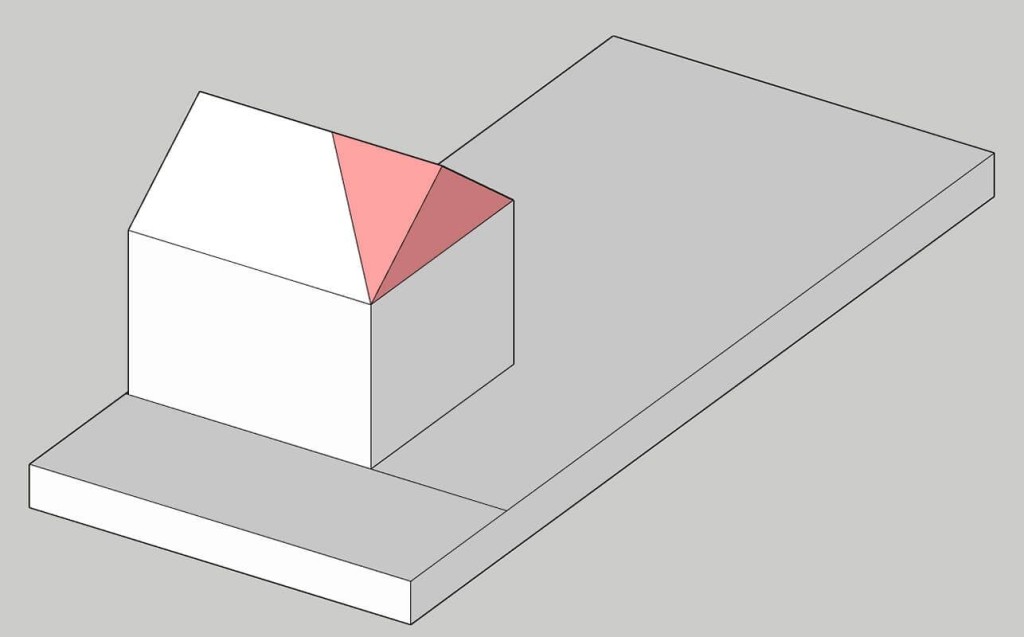

3D model visualisation of a modern loft conversion with a partial red dormer window on a minimalist white architectural structure, illustrating creative use form in building design.

Hip-to-gable loft conversion

If you live in a detached, semi-detached or end-terrace house, you might have a hipped roof. With a hipped roof, the roof slopes on three (semi-detached/end terrace) or four (detached) sides.

With a hip-to-gable loft conversion, one of those slopes is removed and you build out to a vertical wall (gable). Sometimes this type of roof extension is used in combination with a dormer on one of the remaining sloped sides of the roof.

3D rendering of a modern architectural structure featuring a red dormer extension centered on a row of pitched roof houses, depicting innovative design concepts for residential loft conversions.

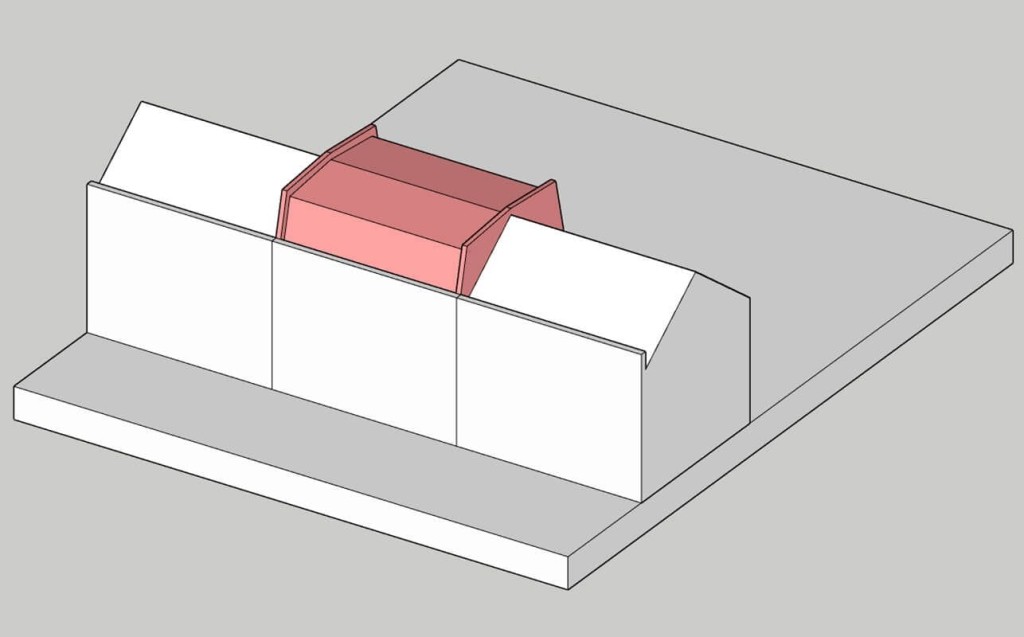

Mansard loft conversion

This is the most ambitious and expensive option is mansard loft extension. (It’s also almost certainly the only one that has a pop song named after it). Essentially, with a mansard you’re replacing at least half your existing roof, and sometimes all of it, with a gently sloped or sometimes flat roof with sharply sloped sides.

You get much more new space than with the other types of conversion, but you will need planning permission, and in some areas (eg a conservation area) that could be difficult. And, as you’re getting your builders to do much more work, you will pay a lot more too.

Next up in our ultimate guide, some of the details of your loft conversion you might want to consider.

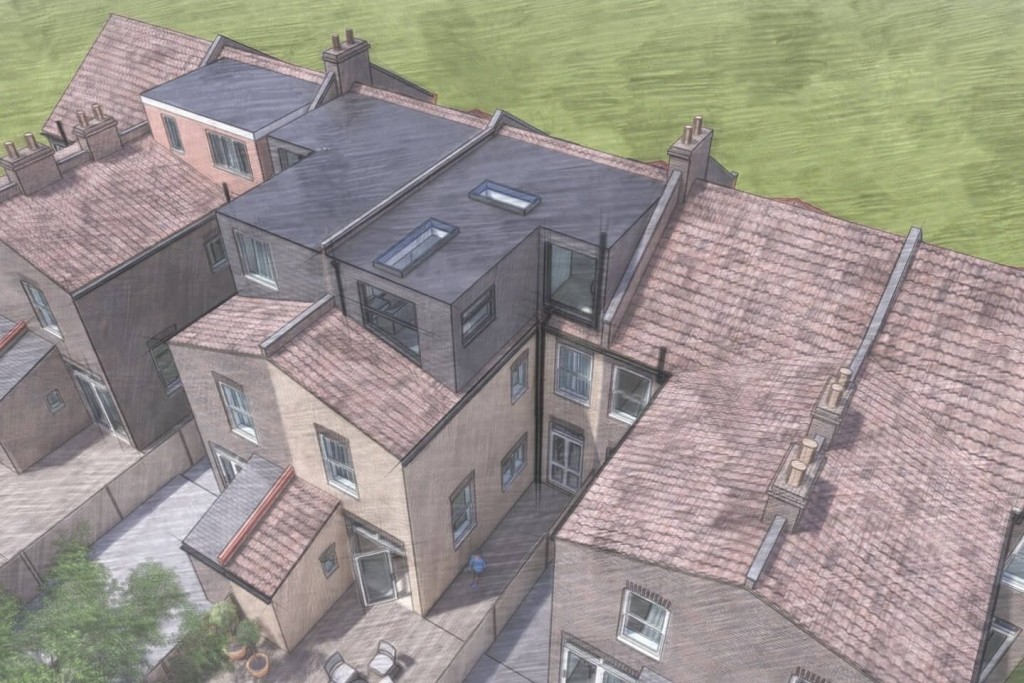

Aerial view of traditional British townhouses with modern loft conversions, featuring skylights and an extension, set in a suburban neighborhood with detailed roofs and vibrant green surroundings, perfect for residential architecture inspirations.
By Urbanist Architecture

Key things to think about

What do you want your loft to look like from the outside?

Have a look at loft conversions in your neighbourhood. Chances are, they are roughly the same size and shape but if you look carefully, the details and finish of the exterior are quite different.

In theory, if the houses look the same, so should the conversions. In practice, outside of the strictest conservation areas, even many terrace houses have come to look quite different from their neighbours in time. And so it’s not surprising that conversions don’t look identical either.

That means you might have the chance to work with your loft conversion architect to create a structure that makes your house look better, rather than a merely practical add-on.

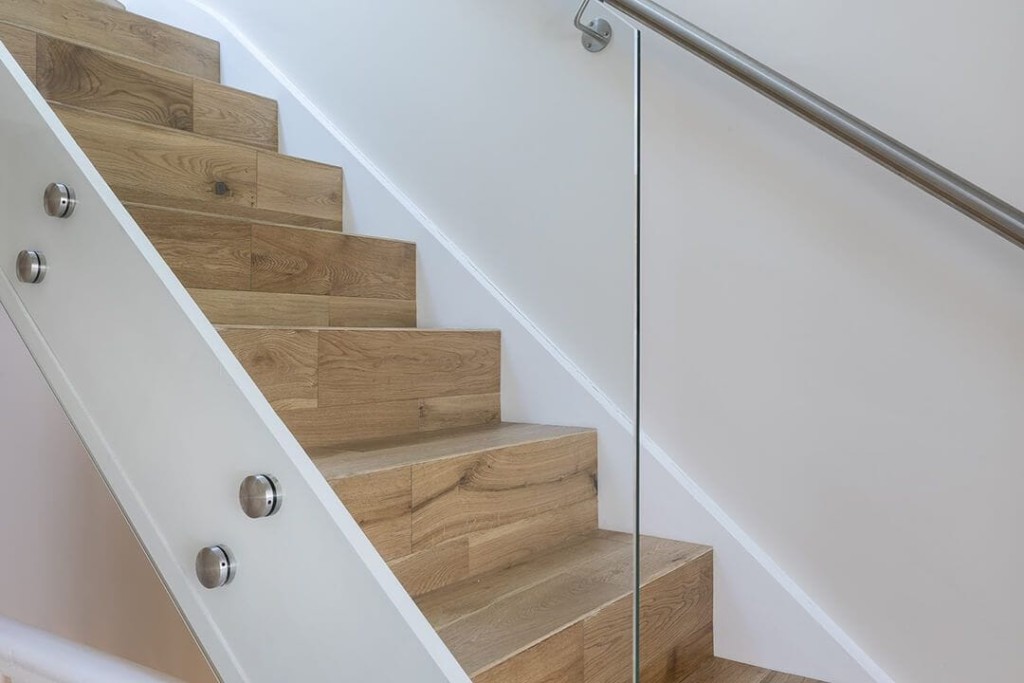

Modern loft conversion staircase with natural oak wood steps, white risers, and a minimalist glass balustrade, illustrating contemporary interior design in home renovations.
By Urbanist Architecture

Where do the stairs go?

It’s easy to think about the new room or rooms you are creating without considering how they link up with the rest of the house. But as well as being very important as far as the regulations are concerned, the stairs to your loft conversion are crucial to both how your new top floor will look and how it will work practically.

Continuing the existing staircase up a floor is often the logical option, but don’t assume that this will work best for you. Think about where the best place for the stairs to reach the loft is. There might be a trade-off between getting the maximum usable space on both floors and a staircase that is easy to use.

If (and we don’t advise this) you are going to have a bedroom or bedrooms but no bathroom on the top floor, for instance, you need to consider that half-asleep people will be using the stairs. With bedrooms, you also have to consider how comfortable it will be to carry heavy objects up and down the stairs.

On the other hand, if the only room in your loft is going to be your office, then think about making the staircase one of the stars of the space. A spiral staircase right in the middle of the room can create a sense of something special.

Heating, air conditioning and cross-ventilation

Is your roof properly insulated at the moment? If not, you should make sure that happens during the conversion. Once that has been done, with heat rising from the rest of the house, your loft should be one of the warmest places in your home.

Loft conversion insulation means that heating might end up less important than ways to keep the loft cool in summer. Whether you are sleeping up there or working, you don’t want it to be uncomfortably hot in the summer.

The two options are: air conditioning or (if you want to save money and be greener) cross-ventilation. Your architect should make sure there is good ventilation in your loft, which is vital not just for temperature control but also for health reasons.

Blinds

One of our key dormer loft conversion tips, which is also relevant to other ways of converting your roof space, is: take blinds seriously. While we all want as much natural light as possible in our homes, at times you need to keep it under control.

If, for instance, you have a west-facing dormer and are using your loft as an office, summer afternoons can be oppressively bright. So don’t rely on DIY store basic blinds: look for blinds that will keep the glare out while not leaving the room completely dark.

Also, if you are using the room during the day, you will be opening and closing the blinds a lot, so you need to pick ones with a mechanism that lasts.

Storage

What’s in your loft at the moment? There’s a decent chance it’s where you keep everything that doesn’t have a place elsewhere in the house. Old kids’ toys, unused gym equipment, suitcases, maybe your winter during summer. So if you are about to convert that space into something else, you need to think about what you are going to do with all that stuff.

Of course, this might be your moment to chuck it all out and get minimal, but you also need to be realistic. Most of us aren’t that ruthless, and some things – those suitcases – you will need to keep. So you need to think about getting your architect to design storage into your loft plans, or else create somewhere else in the house where the stuff you don’t use every day can be kept.

In the next part of our ultimate guide, we will look at the regulations covering loft conversions and extensions.

Top-down view of a detailed 3D architectural floor plan for a loft conversion, featuring a bedroom area, a modern home office, a luxurious bathroom, showcasing smart space utilisation and modern interior design.
By Urbanist Architecture

Do I need planning permission for a loft conversion?

If you are wondering which loft conversion regulations apply to you, then you are not alone. There are so many rules and regulations that it can be hard to decide whether you should extend with or without planning permission.

Most of the time, you can convert your loft subject to specific limitations and conditions without applying for planning permission. You only need to make a certificate of lawfulness application to prove your development falls under permitted development rights for which your residential architect will need to prepare your loft conversion planning drawings and floor plans, and your application form.

What are permitted development rights for loft extensions?

Permitted development rights give you permission to make certain changes to a building without the requirement for planning consent

But be careful: permitted development rights only cover roof conversions located outside of conservation areas and there are strict limits to what is allowed under PD. What’s more, in some circumstances local planning authorities can suspend permitted development rights in their boroughs by issuing what are known as Article 4 directions.

But even if you are in a conservation area or the council has an Article 4 direction about loft conversions, that doesn’t mean that you can’t build one. It means that you have to apply for planning permission and meet your local council's policies.

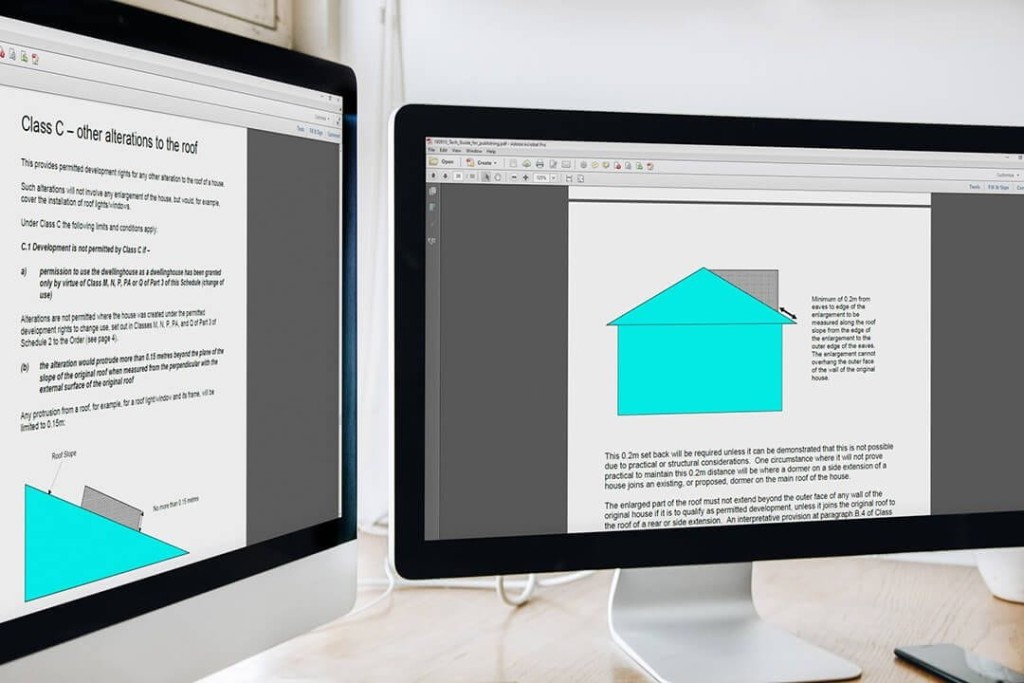

Professional workplace showing two computer monitors with architectural software displaying planning permissions and roof alteration guidelines, ideal for architects and planners working on residential loft conversions.

What changes are permitted?

Your loft extension is subject to limits. For instance, you can only add 40 cubic metres to terraced houses, and 50 cubic metres to all other houses.

Any visible changes must be in keeping with the original building. Things you can’t do under PD rights include adding a balcony with a balustrade projecting from the building, or using colours that contrast with the original house.

Alterations to the roof space with additional room fall under Class B of the householder permitted development rights. The drawings your architect will be submitting for your Certificate of Lawfulness application should indicate that your loft conversion design meets the limits and conditions of permitted development rights. Failure to do so means that your application will not be accepted.

Your loft conversion is permitted by Class B subject to the following conditions:

  • the materials used in any exterior work must be of a similar appearance to those used in the construction of the exterior of the existing dwellinghouse
  • the enlargement must be constructed so that other than in the case of a hip-to-gable enlargement or an enlargement which joins the original roof to the roof of a rear or side extension the eaves of the original roof are maintained or reinstated; and the edge of the enlargement closest to the eaves of the original roof is, so far as practicable, not less than 0.2 metres from the eaves, measured along the roof slope from the outside edge of the eaves; and other than in the case of an enlargement which joins the original roof to the roof of a rear or side extension, no part of the enlargement extends beyond the outside face of any external wall of the original dwellinghouse
  • any window inserted on a wall or roof slope forming a side elevation of the dwellinghouse must be obscure-glazed, and non-opening unless the parts of the window which can be opened are more than 1.7 metres above the floor of the room in which the window is installed

You will require planning permission for loft conversions if:

  • any part of the dwellinghouse would, as a result of the works, exceed the height of the highest part of the existing roof
  • any part of the dwellinghouse would, as a result of the works, extend beyond the plane of any existing roof slope which forms the principal elevation of the dwellinghouse and fronts a highway
  • the cubic content of the resulting roof space would exceed the cubic content of the original roof space by more than 40 cubic metres in the case of a terrace house or 50 cubic metres in any other case
  • it would consist of or include the construction or provision of a verandah, balcony or raised platform, or the installation, alteration or replacement of a chimney, flue or soil and vent pipe

What is a Certificate of Lawfulness?

When you don’t need planning permission, but want proof that your conversion or extension was covered by permitted development rights, you can apply to your council for a certificate of lawfulness (sometimes known as a lawful development certificate). This can be important when you decide to sell the property.

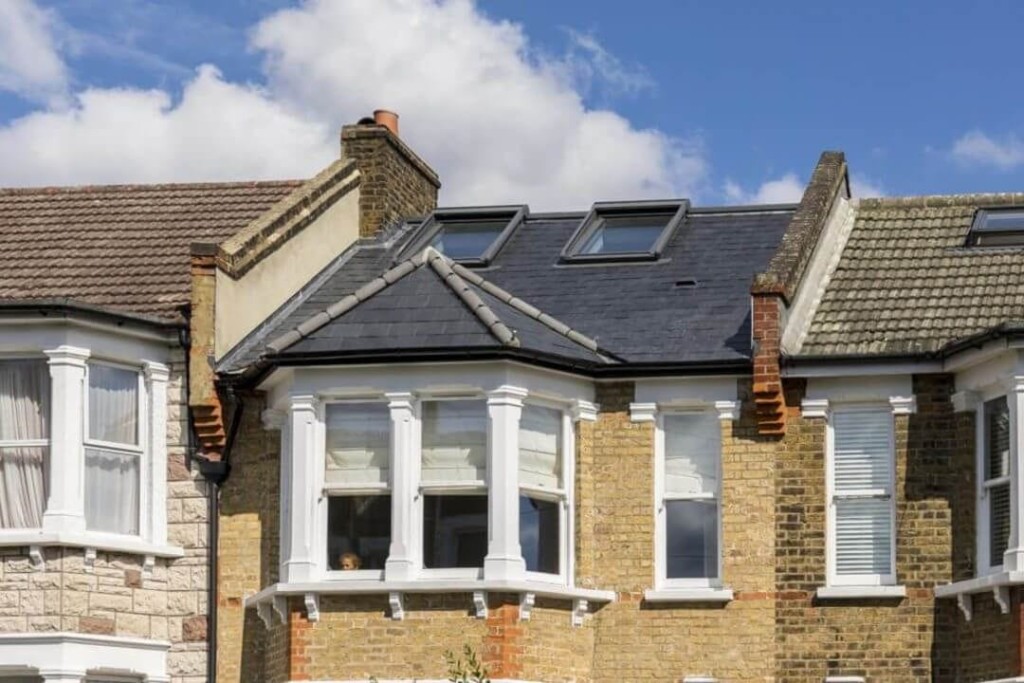

Traditional Victorian terrace house showcasing a modern loft conversion with skylights and a slate roof, beautifully blending classic and contemporary architectural styles in an urban setting.
By Urbanist Architecture

Do I need a Party Wall Agreement for a loft extension?

Unless you have a detached house, you might need a Party Wall Agreement with your neighbours. Whether you do or don’t depends on whether your works will affect the walls that you share with the neighbours.

A simple roof light conversion probably won’t need their agreement, but other types of conversions often do. Your architect will be able to advise you.

So who will help me complete the legal requirements?

Here’s all you have to do: seek for professional help from an architect who has a proven track record in securing consents for loft conversions. Any contravention of the limitations on or conditions belonging to permitted development rights constitutes a breach of planning control against which planning enforcement action may be taken.

And remember: Your council may issue you an enforcement notice that can lead to prosecution with a maximum fine of £20,000. And if your council achieves a successful conviction for failure to comply with an enforcement notice, they can apply for a confiscation order to recover the financial benefit obtained through unauthorised development.

Do I need building regulations approval for a loft conversion?

Yes, you will also require building regulations approval to convert a loft or attic into a habitable space so make sure your architect and your structural engineer prepare the necessary building regulations plans, and structural specifications and structural calculations.

Let’s not forget… Doing it on your own or skipping this step and heading straight to construction is certainly not advised as this could mean pocket-burning fines!

How to choose an architect for designing and building my loft conversion

So what’s the secret of hiring the best architecture firm?

As with any job, the first thing you need to look for is a track record in delivering similar projects; you want to choose an architect who has experience and knows what they are doing. Ask to see portfolios of previous work and quiz them on what they feel the challenges might be on your project.

You aren’t going to be best friends, but you do need to get on with your architect, so chemistry and sharing the same vision is crucially important too.

Good quality communication is also vital. Understand from the outset how your architect will communicate with you to keep you up to date on progress and enable you to make the right decisions. You need to get an idea of whether your architect is a good listener.

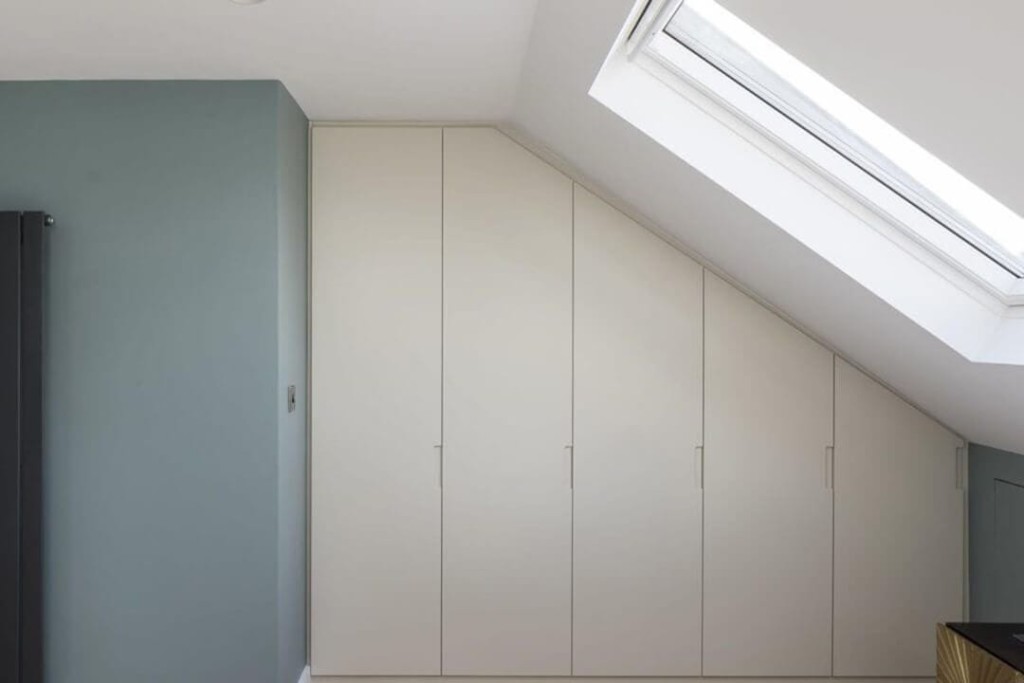

Minimalist loft conversion interior with sleek built-in wardrobes under a sloped ceiling, complemented by a modern skylight that floods the space with natural light, highlighting efficient storage solutions in urban home design.
By Urbanist Architecture

How much does a loft conversion cost in London?

Unsurprisingly how much a loft conversion costs varies depending on the scale and complexity of the work.

How much does a rooflight/basic room in the loft cost?

This is the cheapest type of conversion and will typically be somewhere in the region of £25,000-£40,000. With this type of renovation you can expect the floor to be reinforced, two skylights, a staircase for access, full electrics, fire safety measures and insulation.

How much does a dormer loft conversion cost?

You get all of the above with something like this plus the addition of dormer windows. Dormer roof construction increases floor space, adds height and gives you more natural light. They help with staircase access too.

You won’t get anything cheaper than £35,000 and if it’s a dormer conversion with a double bedroom and en suite you'll be looking at anywhere from £50,000 upwards.

How much does a hip-to-gable loft conversion cost?

At this point, you’re talking serious construction work. You will need scaffolding to be fitted with an appropriate cover as most of the roof structure will be removed – this will bump up the price. Here the time estimates of the contractor have to be realistic; if not the price can rise quickly.

Also as you will be raising the flank wall, you might have to build the wall in masonry, which may require a specialised trade such as bricklayers. It could be good to confirm the adequacy of the foundation of the existing flank wall before raising it. In London, you should be budgeting for at least £60,000 upwards.

How much does mansard conversion cost?

The scaffolding and parapet walls (or flank walls) issue will be similar to a hip-to-gable conversion but the amount of work will be even bigger.

Structurally it is also more complex and it may require cranked beams to be designed and appropriately installed on site. Depending on the site the length of the structural element has to be considered as it can sometimes be difficult to lift them up there in constrained locations.

Designing smaller elements and splicing longer pieces with the subsequent connection design is something that should be considered at an early stage. In London, you should be factoring in at least £100,000 and most likely substantially more.

Try our Loft Conversion Calculator

Those are all ranges of figures of how much you can expect to spend. For a more specific estimate of how much it will cost to transform the space under your roof, try our loft conversion calculator – it will give you an answer in seconds.

Two professional architects collaborating at a meeting table, reviewing digital blueprints and material samples for a residential project, illustrating teamwork and expert consultation in architectural design.

What will my architect do for Me?

In practical terms, you will need someone to provide architectural drawings for your loft conversion. You will need drawings for building regulations approval, and construction drawings for your builders to work from.

But a good architect will do so much more than that. They will guide you through the regulations – it can be easy to make the mistake that ‘permitted development’ means ‘do what you want.’

They will come up with imaginative solutions for what kind of staircase to use, and how to minimise the amount of space you lose. They will find ways to make the most of the areas under the slopes of the roof. And they will do the crucial thinking about where the light will be coming into your loft extension at what time of day.

What will the architect’s fees be?

How does it cost to hire an architect to work on your loft conversion? In London, you should factor in at least £5,000 for a qualified architect to design your loft conversion for you.

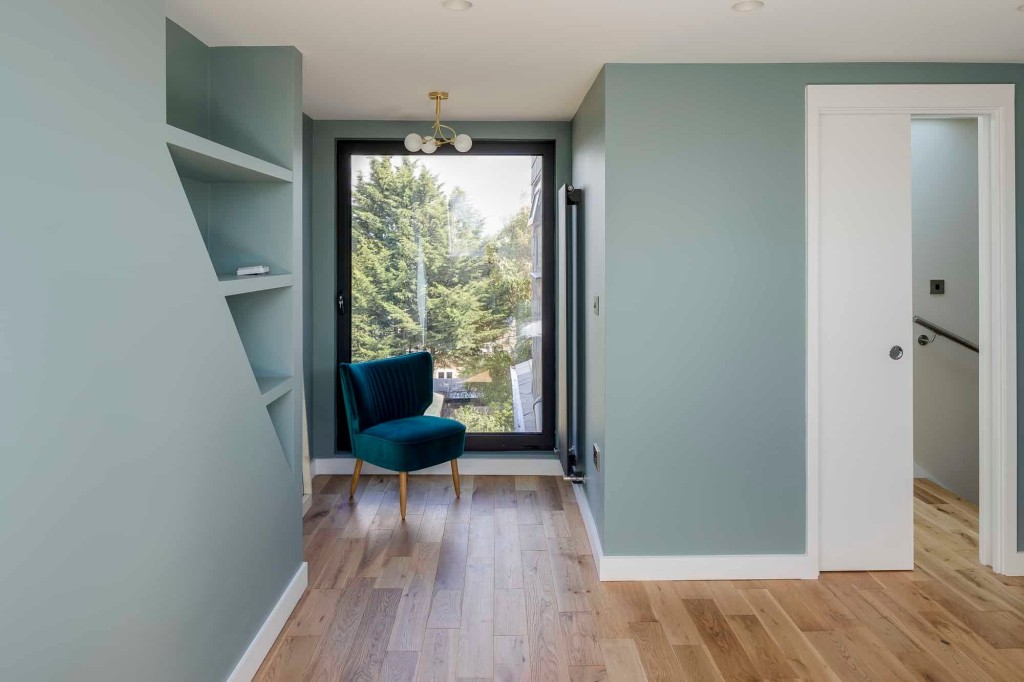

Contemporary loft conversion reading nook with a teal velvet armchair by a floor-to-ceiling window overlooking lush greenery, featuring stylish built-in shelves and light hardwood flooring, ideal for modern home interiors.

Looking forward to your exciting new loft

We hope you have learned something from our ultimate guide to designing and building a loft conversion. We think that there are amazing possibilities for what you can do with your loft, and it can make a huge difference to your home.

While putting together this guide, we talked to clients, friends and family about their experiences of converting their lofts, and all of them – every single one – said they were happy that they had done it.

The secret to transforming the way you live might be sitting there, above you, unused right now…

How Urbanist Architecture can help you

Urbanist Architecture is a London-based RIBA chartered architecture and planning practice with offices in Greenwich and Belgravia. With a dedicated focus in proven design and planning strategies, and expertise in residential extensions and conversions.

If you would like us to help you with your loft conversion or any other type of home extension or renovation, please don’t hesitate to get in touch. Contact us now.
